Water cut
Cold cutting solution for shaped pieces

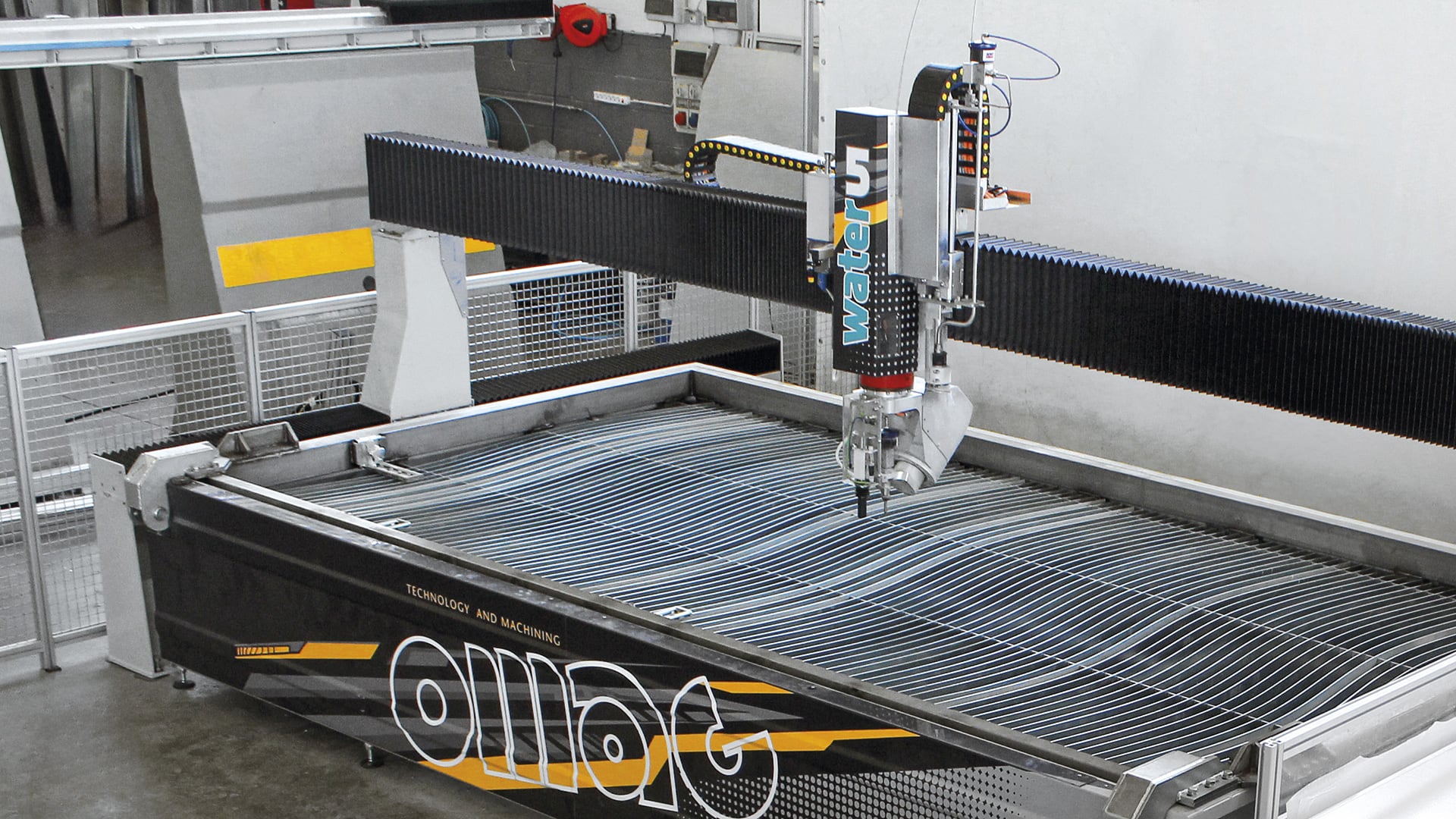

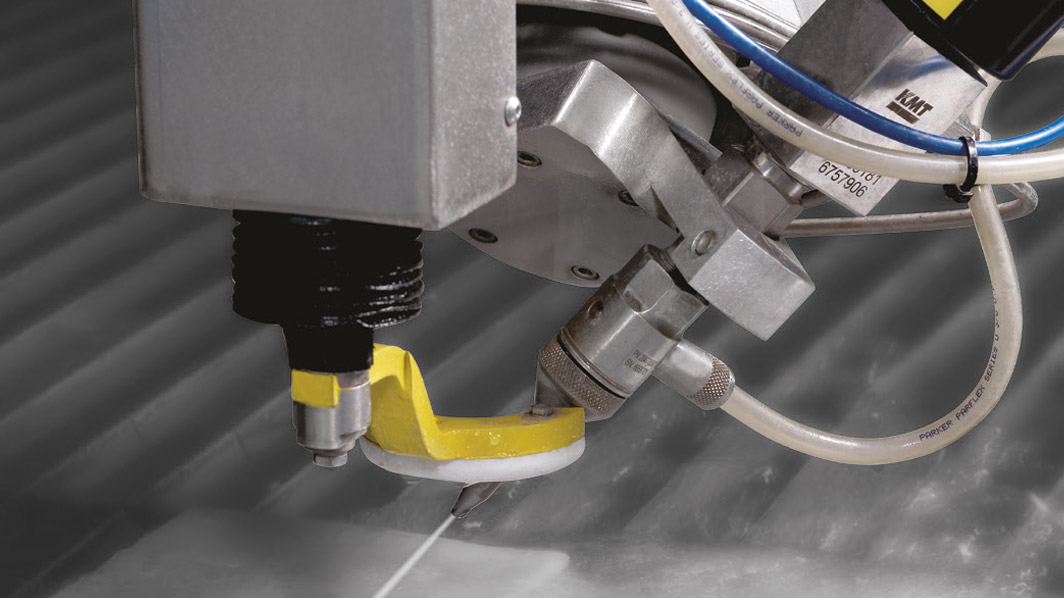

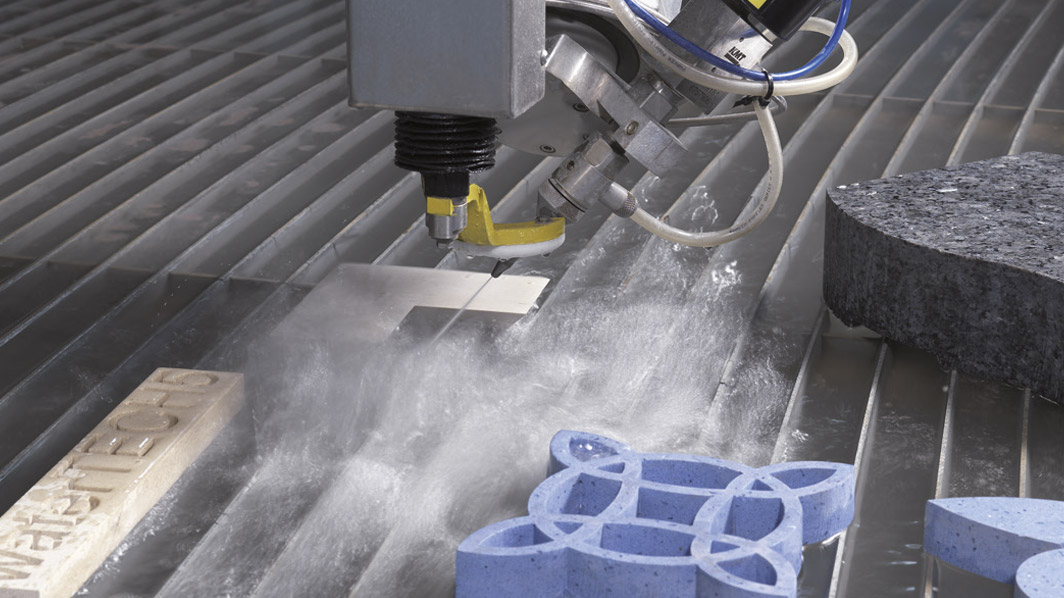

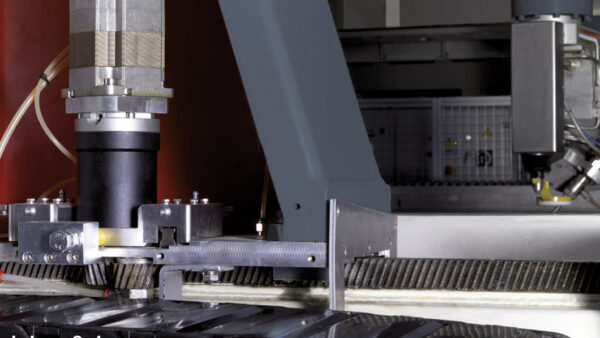

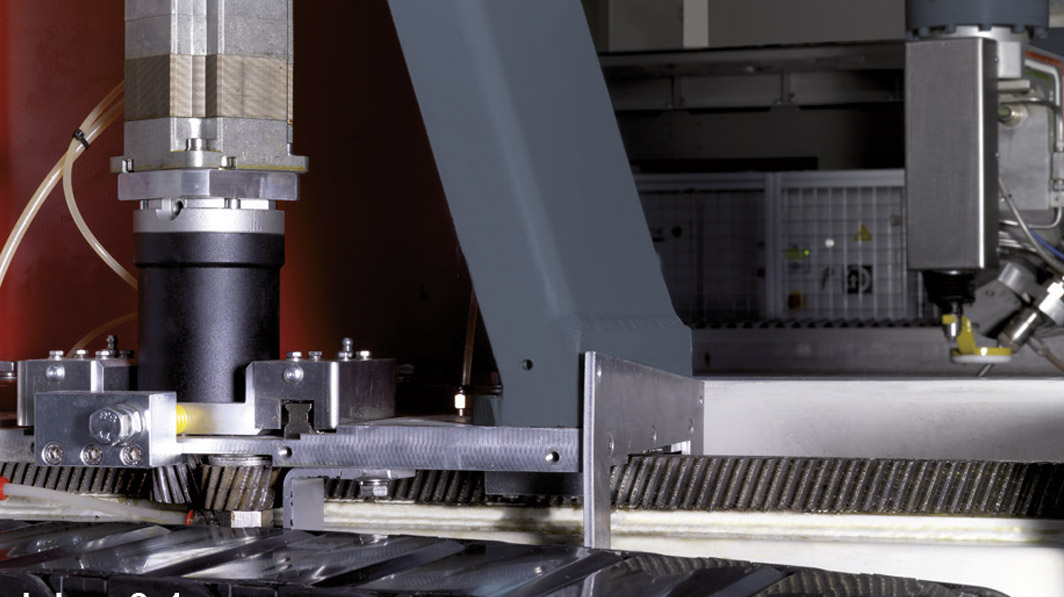

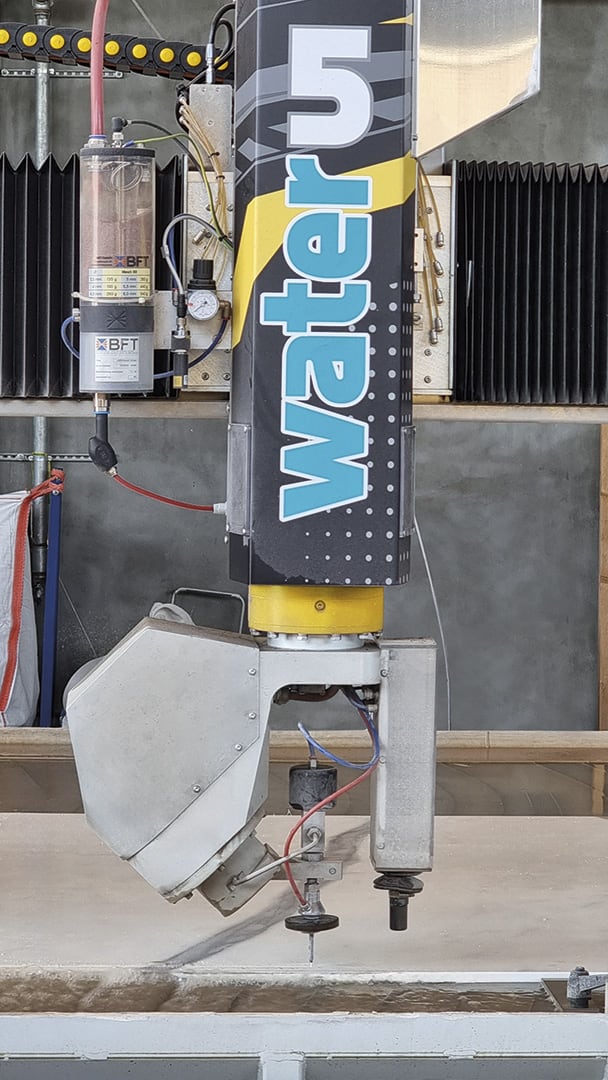

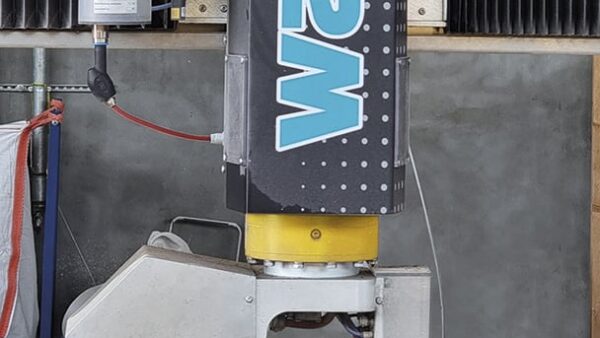

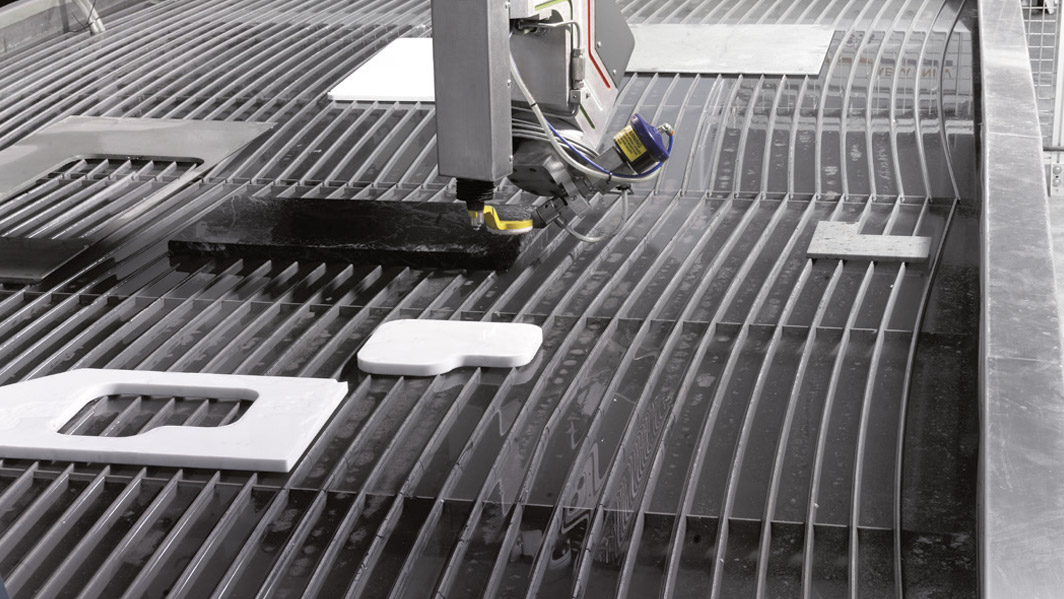

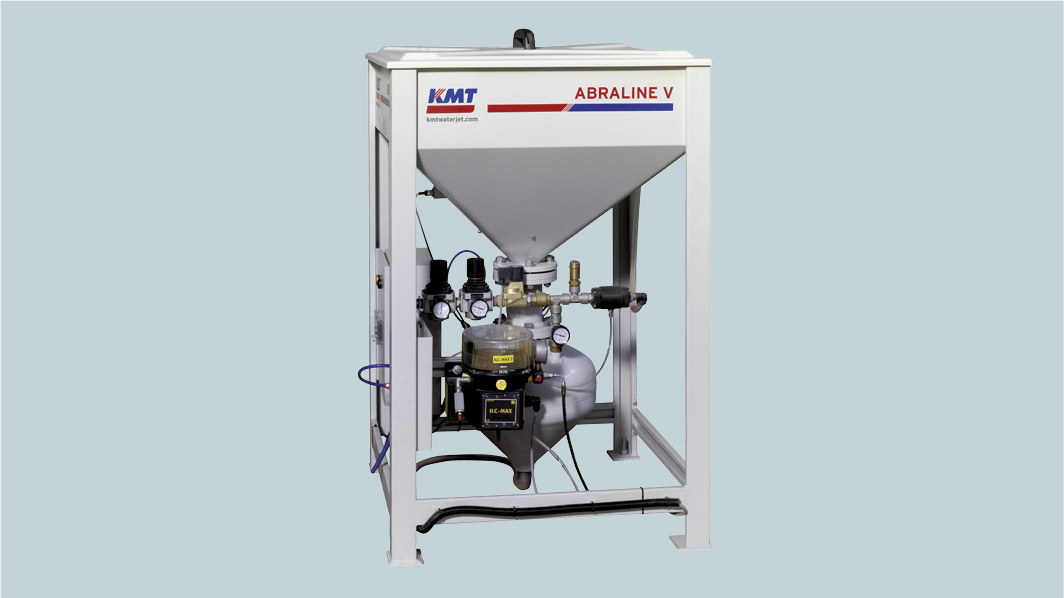

The Water Jet is the cold cutting solution for shaped pieces with more or less complex geometries up to quite relevant thicknesses. A pure water or mixed with abrasive jet can be used . The X and Y axes are motorized with a brushless digital system with helical hardened pinions and racks. The linear ball guides guarantee further handling quality. The Z axis is equipped with a ball screw.
Gallery
Video
Video
| Controlled and interpolated axes n° | 5 |
| Size of the slab support surface | 4.000 x 2.000 mm |
| X-axis – Cross axis stroke | 4.000 mm |
| Y-axis – Bridge axis stroke | 2.000 mm |
| Z-axis – Vertical axis stroke | 200 mm |
| C-axis – Rotation on axis | ± 400° |

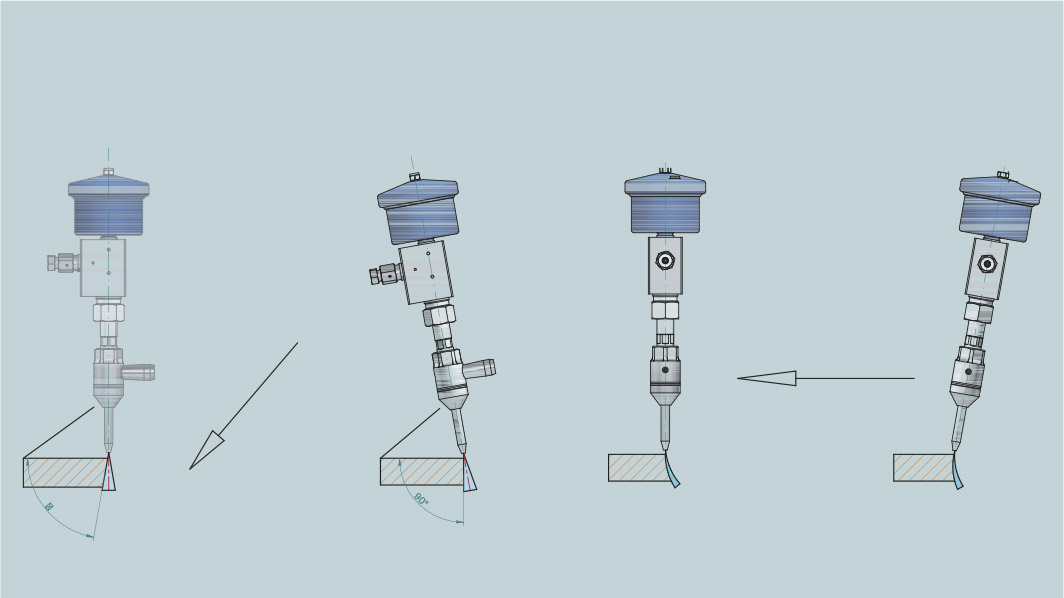

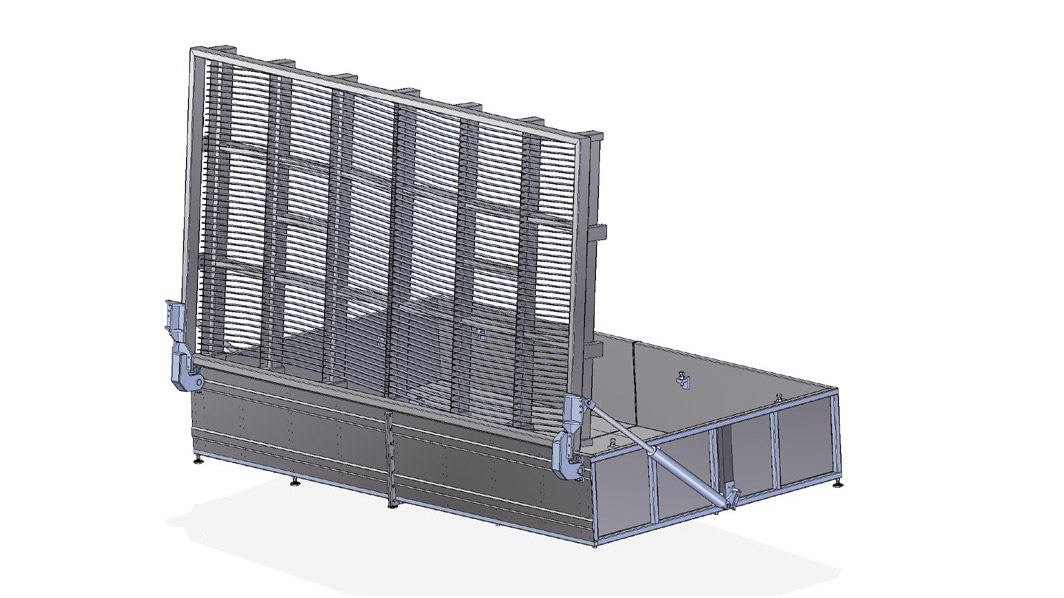

| A-axis – Cutting head inclination with water | ± 70° |
| X and Y axis movement speed | 42 mt/min |
| Z-axis movement speed | 15 mt/min |
| Table inclination with maximum tilting capacity ** | 80° |
| Maximum static capacity applicable on the table | 3.000 Kg |
| Maximum distance from the cutting head with water to the support surface | 150 mm |
| Diameter minimum and maximum mountable discs | – |
| Maximum cutting thickness with disc diameter Ø 300 | – |
| Disc motor power KW/HP and maximum rotation RPM | – |
| Dimensions of cutting surface with “combined” disc and water cutting head | – |
| Distance from the base of the cutting disc Ø 300 to the support surface | – |
