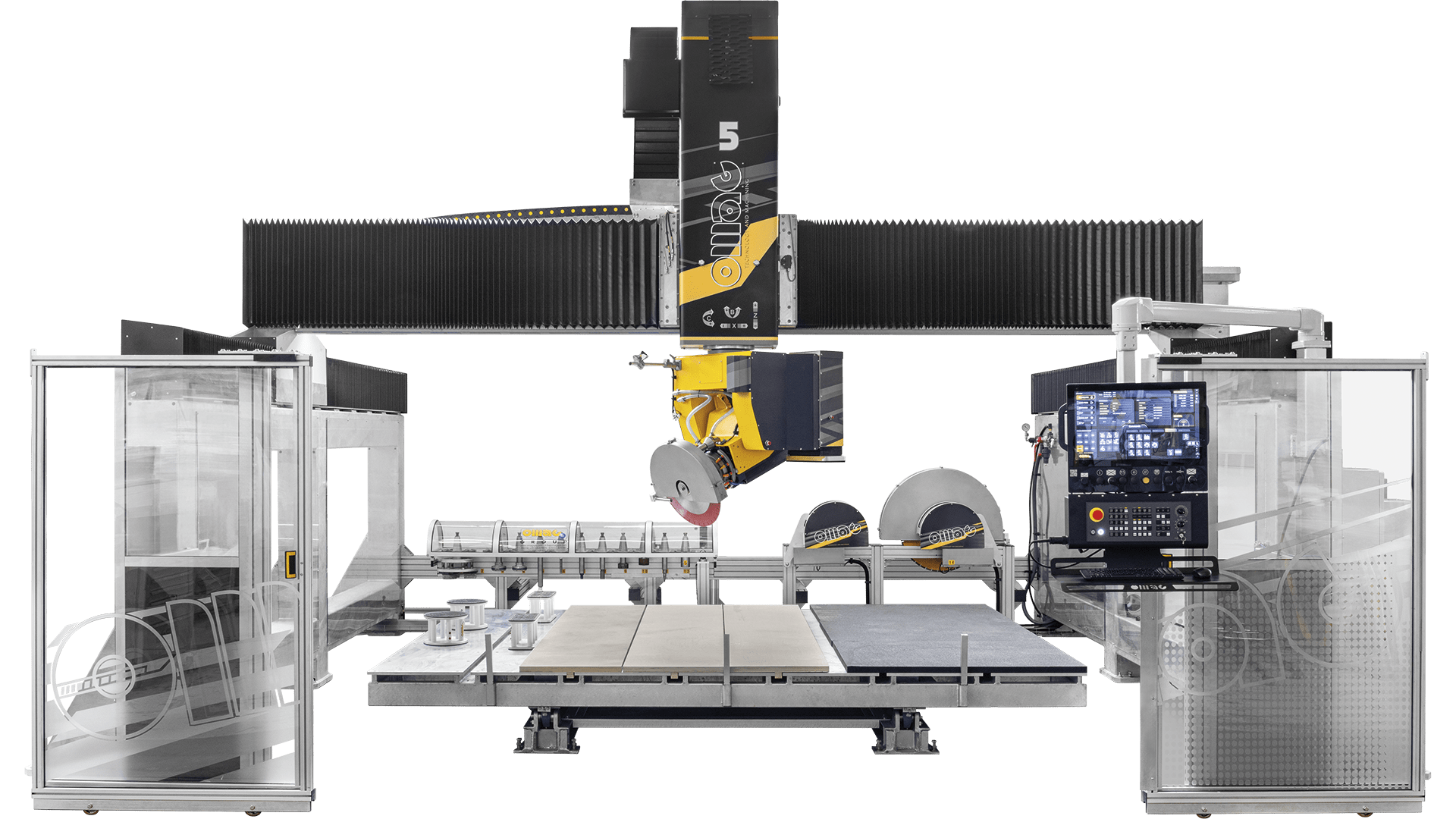

Area5 advanced
Cutting shaping polishing bridge saw contouring 5 axes interpolated

A BLADE machine means uniquely technology, precision and reliability. A numerical control working center projected to work with large saws and milling tools of all the measures, marble, stone or granite. The high speed of the movement of the axes is guaranteed by a full digital brushless motorization combined with a sliding movement on linear guides rails and ball bearing blocks.

All the moving parts are protected by PVC bellows and a centralized lubrication system grant quality and durability in long time. OMAG machines are equipped with Easy and Fast System Process Controls providing state-of-the-art process control in a user-friendly environment.

Easy and Fast System Process Controls consistently monitor and control all variables in real time against your pre-established programmed. A monitoring for cutting and milling increases work performance and resulting in patterns highest quality.

Interpolated controlled axes 5
Ø Maximum diameter saw mm 850
Cutting thickness mm 285
Ø Minimum diameter saw mm 350
Axis X – Transversal stroke* mm 3.800
Axis Y – Longitudinal stroke* mm 2.000
Axis Z – Vertical stroke* mm 700 / 800 / 900 / 1.000

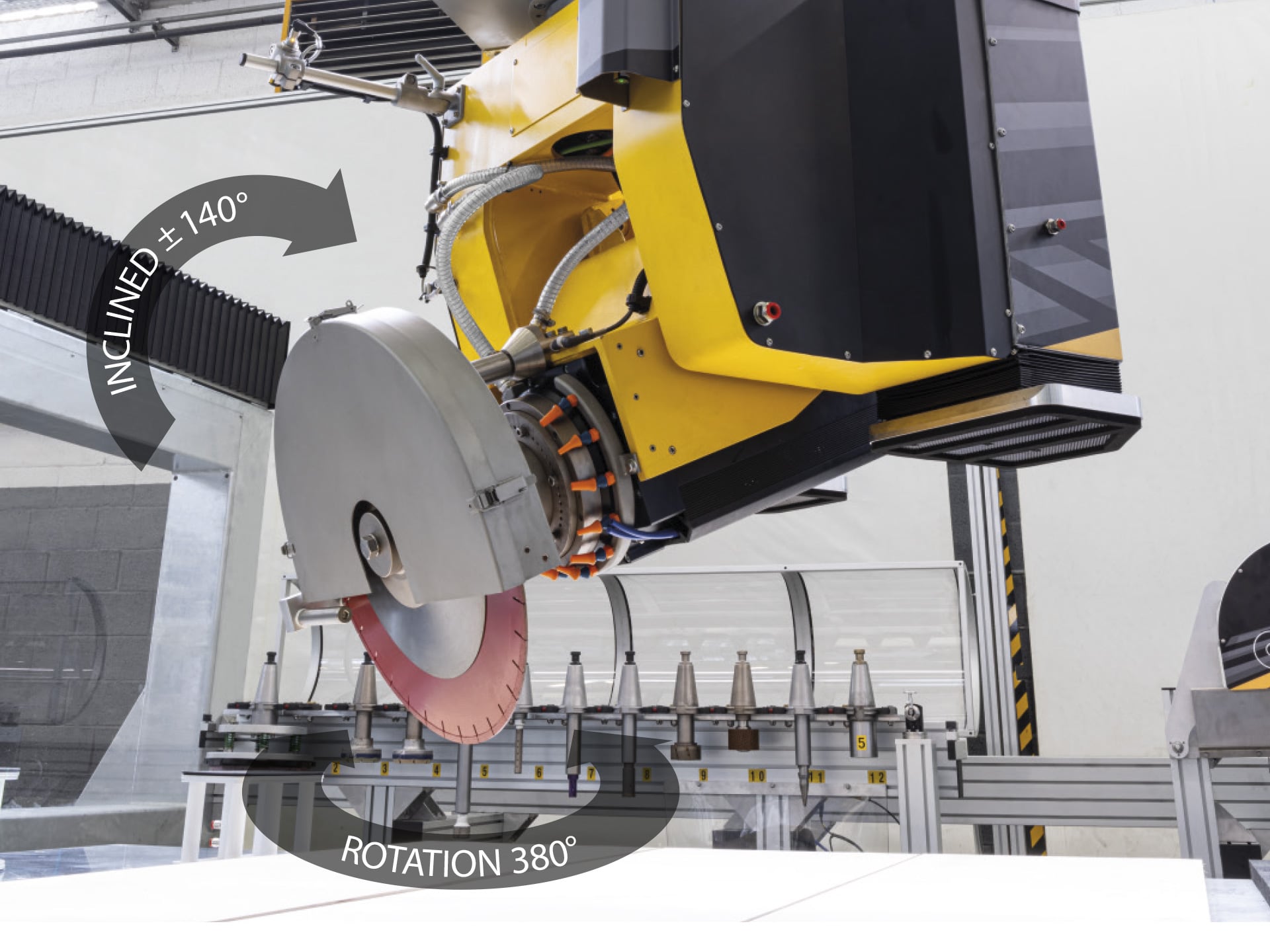

Axis C – Rotation 0° 380°

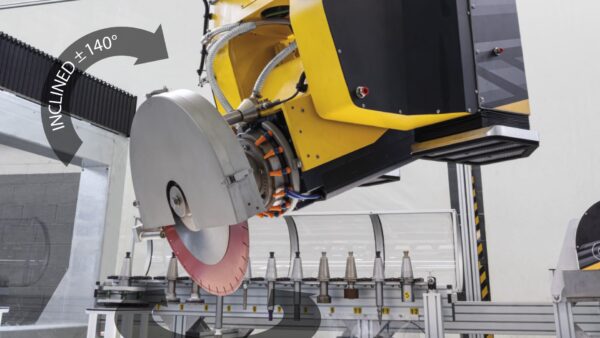

Axis B – Tilting 0° ÷ 100°
Table sizes mm 3.600 x 2.000

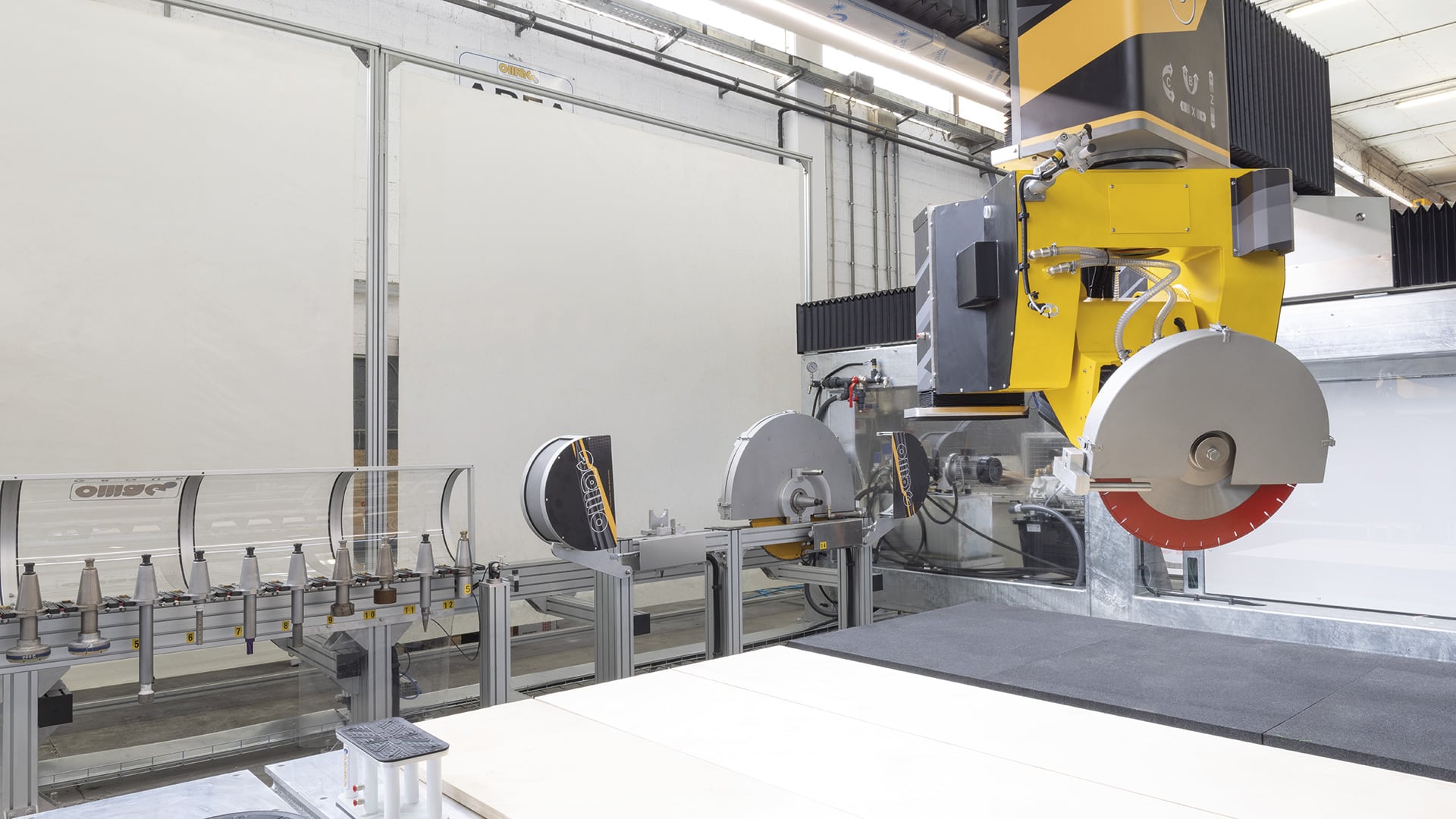

ISO Automatic Blade Change mm Ø 625
ISO Automatic Blade Change mm Ø 850
ISO Automatic Blade Change mm
Motor power 27.7 HP (s6)
Tool Attachment ISO50
Rotating control by inverter RPM 0 ÷ 10.000
Water consumption l/ min 40
